Tuthill Mk. 2 Centipede Harvester:

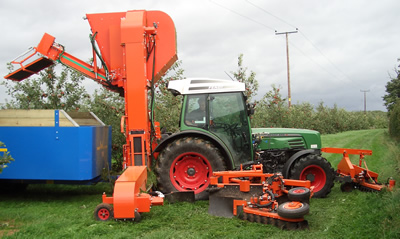

Tuthill Mk. 2 Centipede Apple Harvester

Technical Specifications arrow

Centipede Harvester capacity: 12 tonnes per hour
Row
width:
From 5.5 metres
to 6 metres
other widths available
Height over picking head by tree trunk: 500 mm
Power
system:
Independent hydraulic system driven from the tractor PTO
40 litres per min. @ 400 PTO rpm
Power consumption: 15 HP
Cleaning
systems:
Twin Tuthill Temperley hedgehog belts, with brushes and 710mm diameter fan system
Trailer
height:
2 metres. Fruit diverter for efficient filling of 4 tonne trailers.
Closed circuit colour TV system with 2 cameras: Optional
Centipede Side Sweep cleared width: 0.6 metres
Centipede Front brush cleared width: 2.6 metres

Centipede Apple Harvester Brochure
Centipede Apple Harvester
Apple Harvesting Machinery
Centipede Apple Harvester
Centipede Apple Harvester
Centipede Apple Harvester
Centipede Apple Harvester




Pick up system:

The pick-up system uses a combination of Tuthill Centipede technology to give an exceptionally fast and gentle pick-up that can handle the heaviest crops. Forward speeds of over 3 kph (2.0 mph) are possible and enable the harvester to cover over one and half acres per hour. The Centipede picks large or small fruit gently and without damage.

Cleaning system:

Most growers using Centipede harvesters are able to send their fruit straight to cider-makers without any post harvester cleaning. This is because the Centipede harvester has an efficient double cleaning system. It has two well proven Tuthill hedgehog cleaner belts which are combined with a powerful 710mm dia.fan. The hedgehog belts each have a rotary brush to keep them clean and operating efficiently. This system provides very high fruit throughput with unrivalled fruit quality combined.

Elevator and conveyor systems:

The elevator lifts the fruit from the picking head to the cleaning system from where a conveyor delivers the fruit into the trailer. The conveyor can fill a large trailer with 2.00 metre high sides. There is a fruit diverter at the end of the conveyor so that the fruit can be directed anywhere in the trailer. It is quite usual for trailers to carry more than four tonnes of fruit.

Power system and control:

The Centipede harvester is hydraulically powered from the tractor PTO. It has its own integral hydraulic tank, oil cooler, and hydraulic control valve. The controls are all electric and there is a compact switch console conveniently mounted in the tractor cab.

Closed circuit TV:

The harvester is fitted with two closed circuit TV cameras. One camera gives the driver a view of the cleaners and the other looks over the conveyor and trailer loading.

Trailer towing:

The Centipede harvester is attached to the back of the tractor in a way that leaves the tractor’s automatic hitch available for trailer towing. This keeps the tractor balanced, and traction optimised. The tractor has complete freedom of movement when turning left with a trailer, and limited movement when turning right.

Clearing fruit from between the trees:

Tuthill Centipede side sweep is mid-mounted on the tractor. It is clears the fruit very efficiently from between the trees. There is no need to use a blower. The side sweep can work in any row widths from 4.25metres (14 feet) to 6.0 metres (20 feet). It folds up for transport. The speed limit for the Centipede working between trees is around 3 kph (2.0 mph).

Centipede front brushes:

Centipede front brushes are mounted at the front of the tractor and clear any fruit lying in the path of the tractor. They clear a path of over 2.6 metres (8.5 feet) giving ample room for a trailer with wide tyres to follow without crushing fruit. The Centipede system clears the fruit quickly so there is no fruit left on the ground when the harvester gets to the end of the row. The brushes fold automatically when lifted. This makes them compact so that turning at the headlands requires less space. The brushes are available in two versions. One version fits onto a standard tractor front three point linkage. The other version has its own lifting system. Both brushes fold automatically.

Harvester output:

The output of the harvester can be measured by the amount of ground it has covered or the amount of fruit harvested. In heavy crops the harvester can easily pick and clean over 12 tonnes per hour. Output will ultimately depend on the speed with which it can be supplied with empty trailers. In lighter crops the harvester can travel at up to 3 kph (2.00 mph), to cover about one and half acres per hour.
